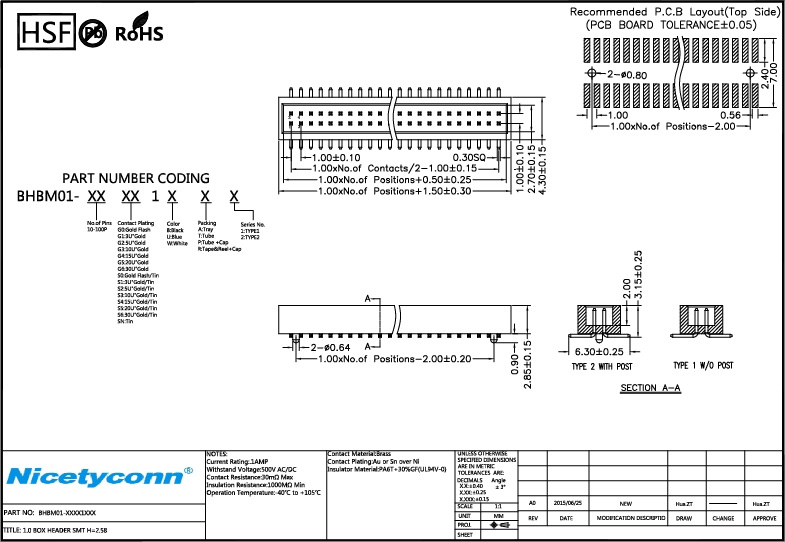

1.0 mm Pitch SMT Type Box Header Plug |
|
Specification: |
|
Current Rating: 1.0AMP |
|
Withstand Voltage: 500V AC/DC |
|
Contact Resistance: 30mΩ Max |
|
Insulation Resistance: 1000MΩ Min |
|
Operation Temperature: -40oC to +105oC |
|
Insulation Material: PA6T+30%GF(UL94V-0) |
|
Contact Material: brass |
|
Contact Plating: Au or Sn over Ni |
