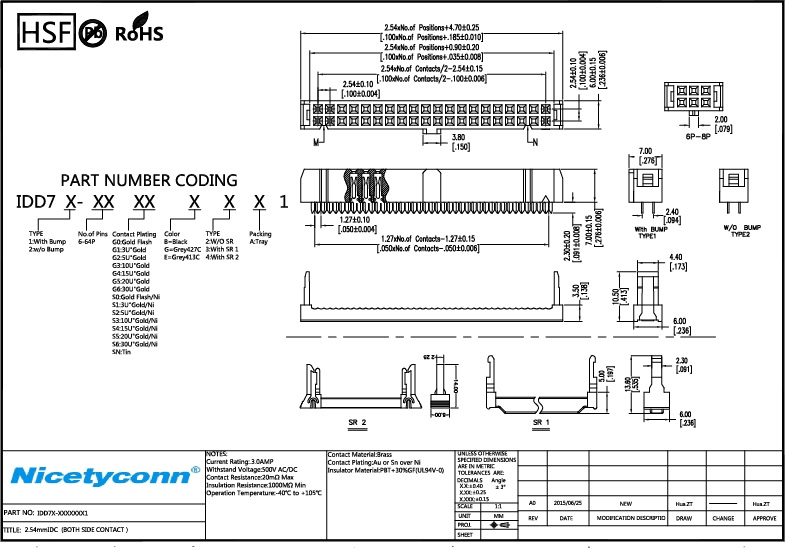

2.54 mm Pitch Double Socket IDC Socket Connector |
|
Specification: |
|
Current Rating: 3.0AMP |
|
Withstanding voltage: 500V AC/DC |
|
Contact Resistance: 20mΩ Max |
|
Insulation Resistance: 1000 mΩ Min |
|
Operation Temperature: -40oC to +105oC |
|
Contact Material: Brass |
|
Contact Plating:Au or Sn over Ni |
|
Insulator Material:PBT+30%G.F(UL94V-0) |
